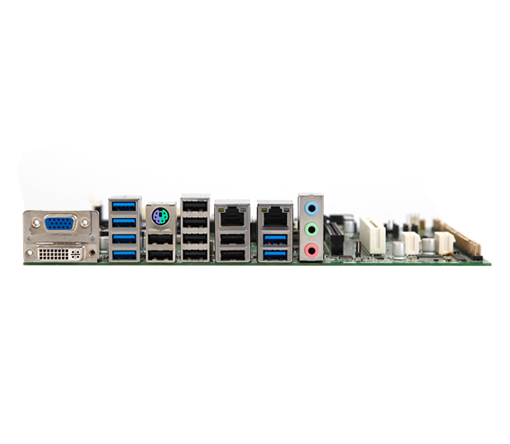

Model Number

EE-8166L

Dimensions

244*244MM

Dispay

VGA(standard DB15),DVI

Audio

HD ALC662 Audio decoder (Left and right channel + microphone)

Network

2*RTL 8111/HE Gigabit Ethernet Card

CPU

Intel LGA1150 processor

Chipset

Intel H81/B85

Memory

DDR3 1066/1333MT/S, Maximum support 16GB DDR3

Storage

SATA, mSATA

USB

14*USB(compatible USB2.0/1.1, maximum support +5V@1A. Pinheader*2, Back I/O*4, 6USB3.0 )

COM

12*RS232

Parallel port

1

PCI

1

PCIE

2

PCIE-X16

1

Mini-PCIE

1*MINI-PCIE, 1*Slot, support PCIE and USB device

Power supply

ATX

operating temperature

-10℃-70℃

storage temperature

-20℃-80℃
