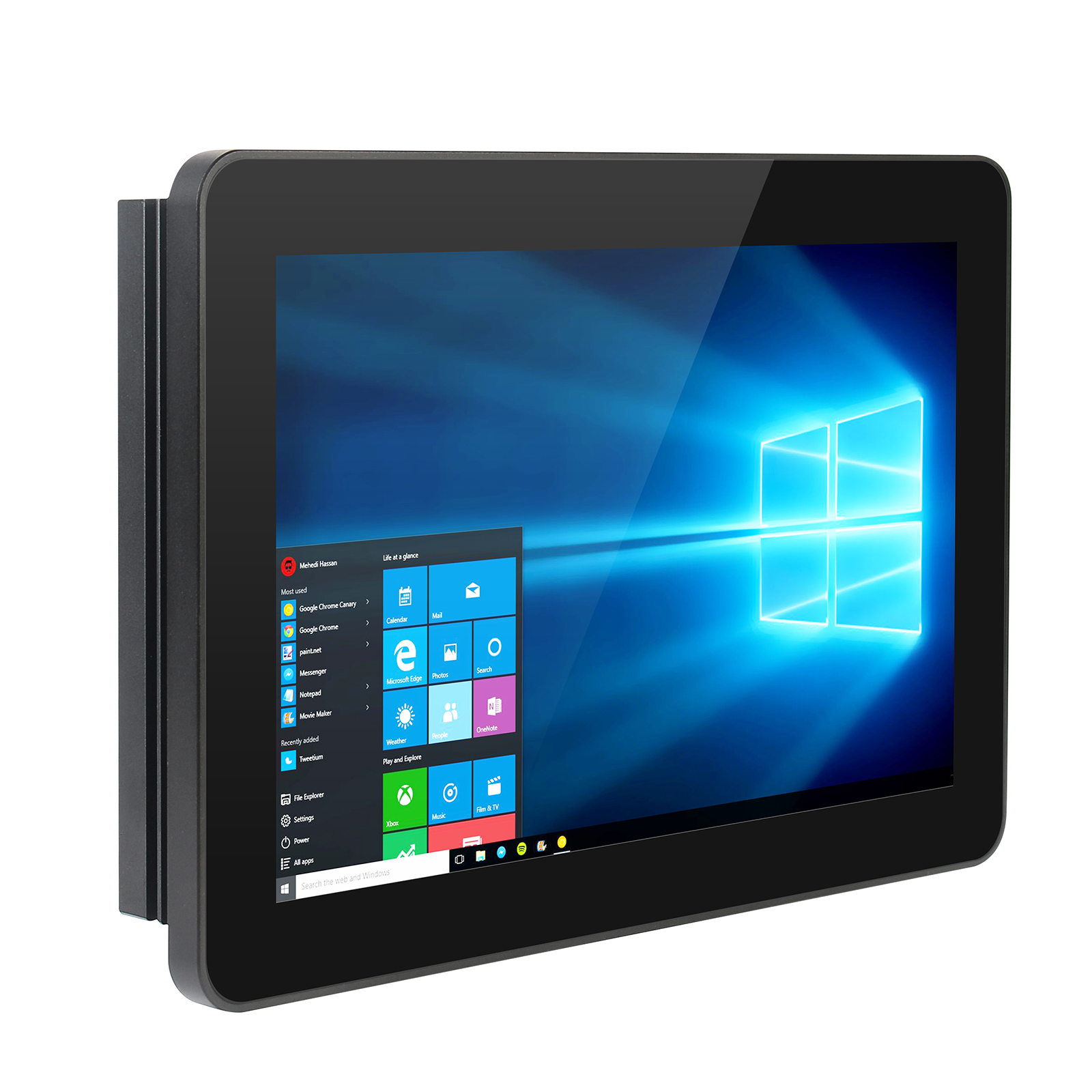

Model Number

UU-3816S-L10.1

Display Screen

10.1 inch TFT LED

Dimensions

260*180*61mm(L*B*H)

Brightness

250cd\m2

Resolution

1366*768

Touch Screen

capacitive touch screen(choosable)

CPU

Intel Skylake 3855U 1.6GHZ(the 6th I3\I5\I7 is choosable)

0S

Windows 7\8\8.1\10,Linux

Screen

17 inch TFT LED

Memory

4GB/8GB DDR3L(choosable)

Storage

SSD 32GB/64G/128GB/256GB(choosable) 1TB/2TB HDD

USB

9*USB2.0 + 1USB3.0 (10 USB)

Port

6*RS232(or1*RS422/485)

I\O Interface

2*1211Intel

Dispay

HDMI+VGA+LVDS

Audio

1

IP Protection Level

IP68

Reliability

MTBF≥50000h;MTTR≤0.5h

Network

2*Realtek 8111E/H,10/100/1000Ethernet

Voiltage

DC 12V 10A

operating temperature

-10℃ -70℃

Weight(N.T)

11KG

Color

Black
